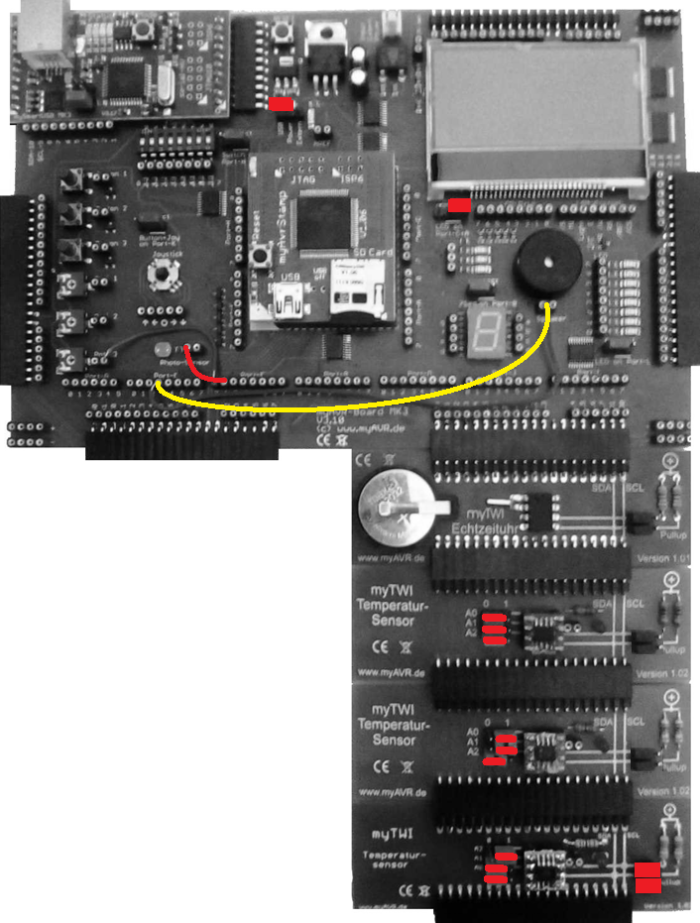

Entwicklungshardware
Hardware Tests
…

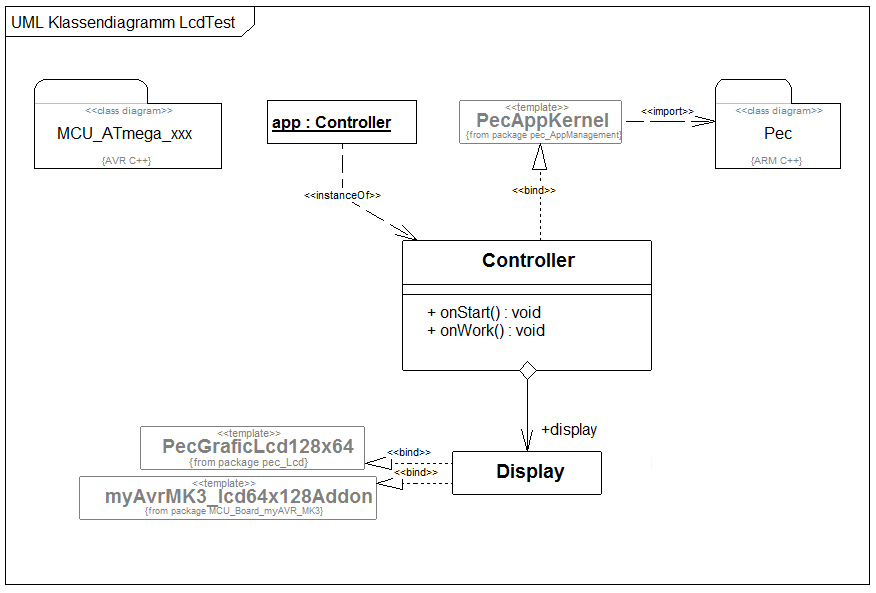

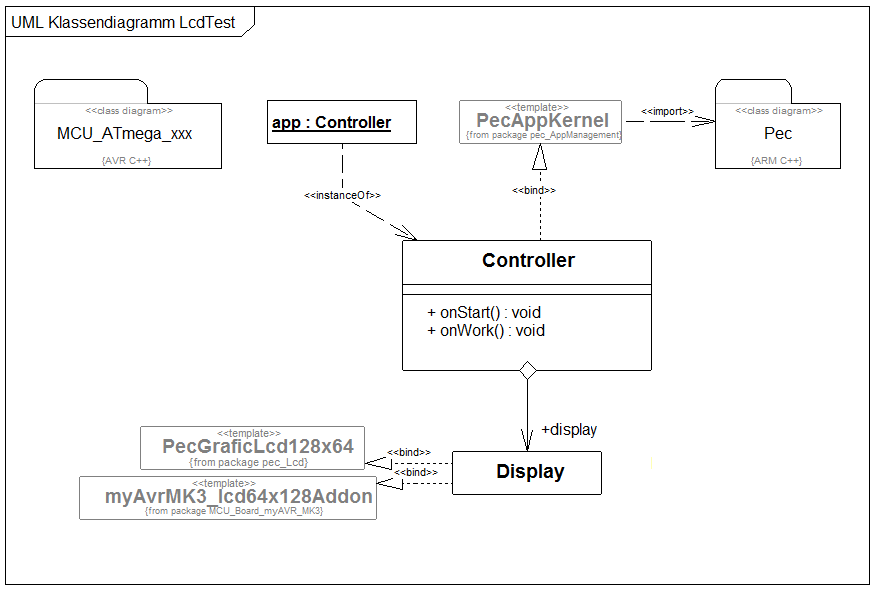

Dispaly-Test
…
…
Controller::onStart
// boot sequence after start SysTick dispaly.clear(); display.setPos(0,0); display.write("Hallo Display"); display.line(10,10,50,50,LCD_MODE_SET); display.rect(20,20,60,30,true,LCD_MODE_XOR); display.circle(40,30,15,false,LCD_MODE_XOR);

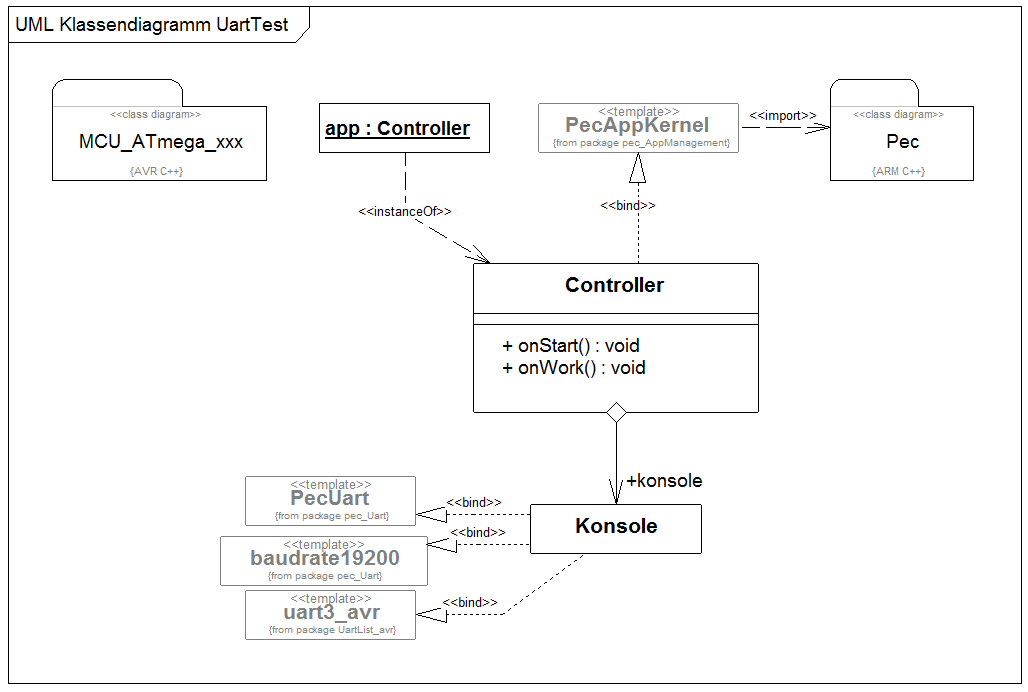

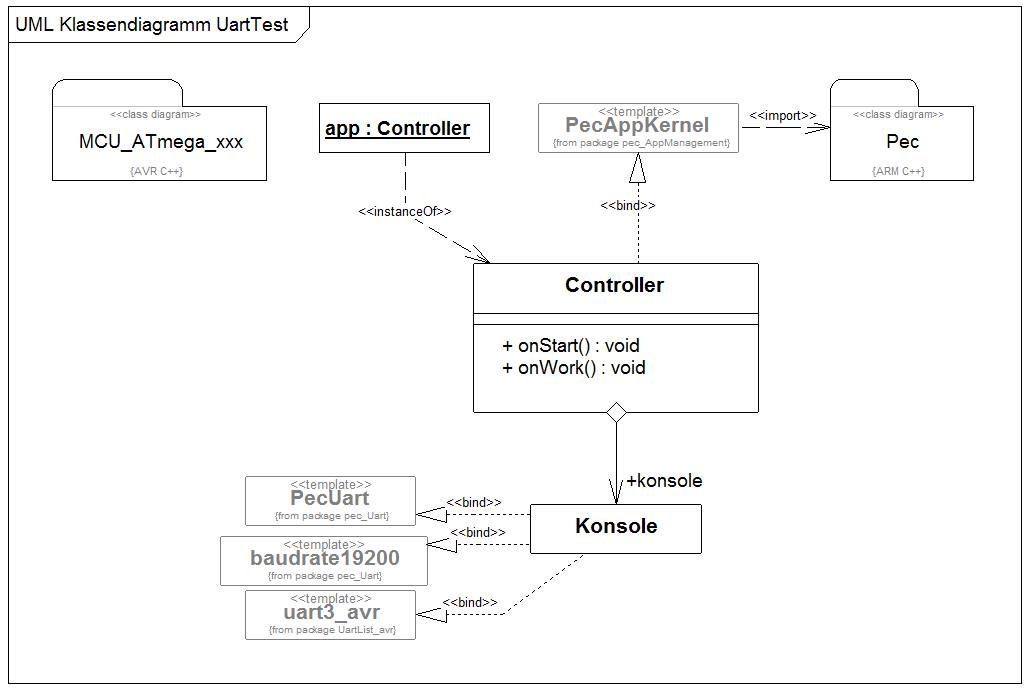

UART-Test
…
…
Controller::onWork()
// continuous event from the Mainloop konsole.writeString("\nHallo Konsole"); waitMs(200);

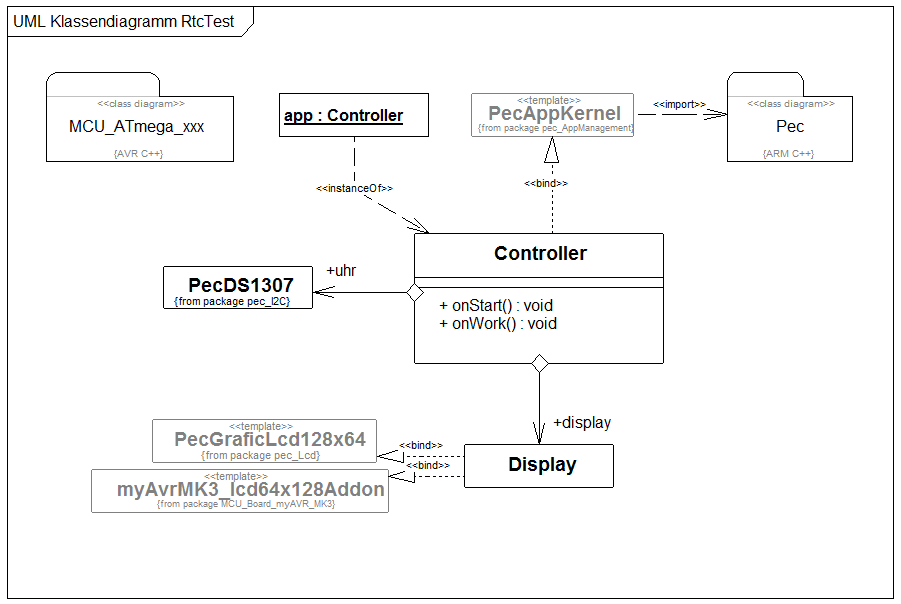

Echtzeituhr-Test
…
…
Controller::onWork()
// continuous event from the Mainloop String txt; txt=uhr.getTime("%d.%M.%Y %h:%m:%s"), display.clear(); display.setPos(0,0); display.write(txt); waitMs(1000);

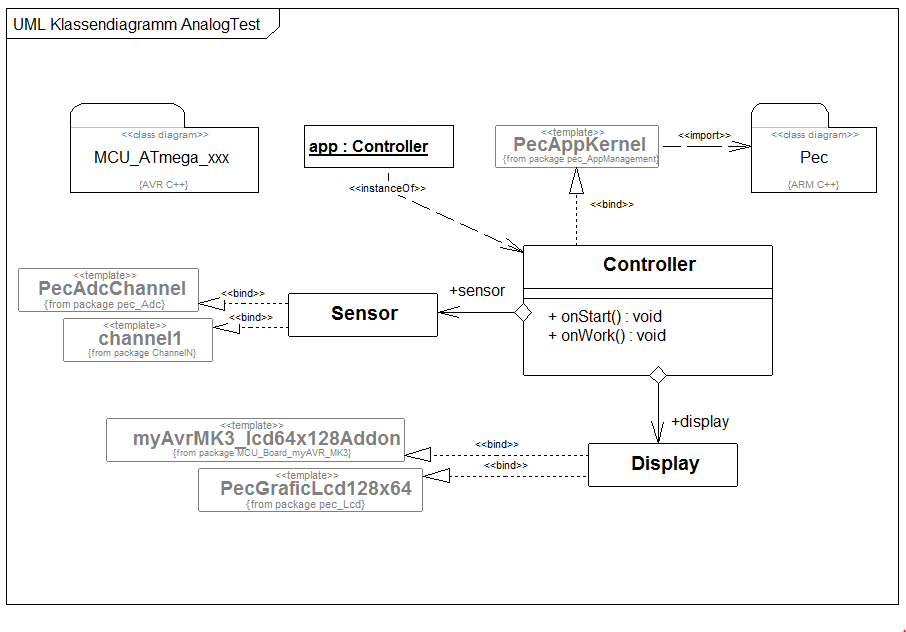

Lichtsensor-Test
…
…
Controller::onWork()
// continuous event from the Mainloop String txt; int16_t value; value = sensor.getValue(); txt.format("Sensorvalue=%d",value); display.clear(); display.setPos(0,0); display.write(txt); waitMs(100);

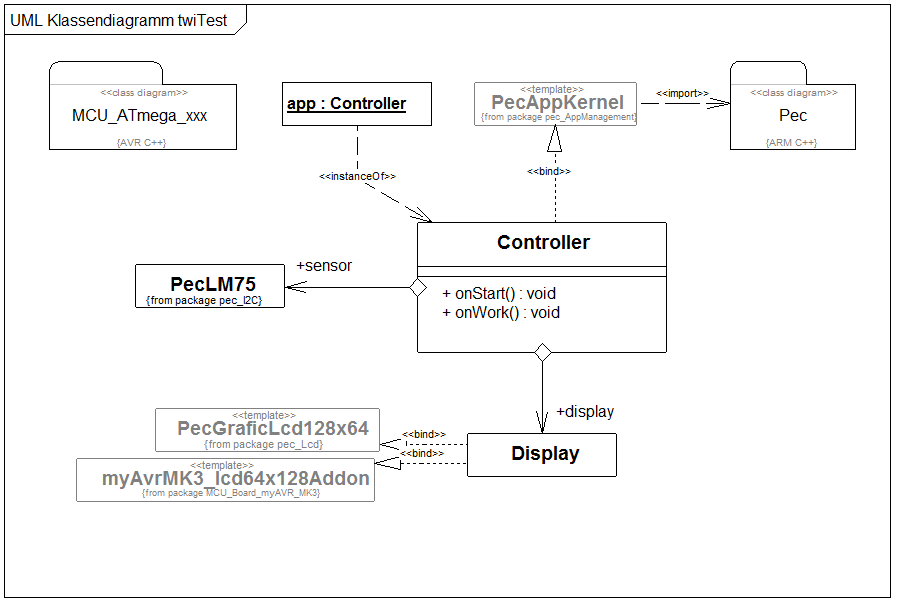

Temperatursensor-Test
…
…
Controller::onWork()
// boot sequence after start SysTick //sensor.setAddress(0x90); // A0-2 = 0 sensor.setAddress(0x96); // A0-1 = 1 | A0 = 0
Controller::onWork()
// continuous event from the Mainloop String txt; uint16_t value; value=sensor.getTemp(); txt.format("Temperatur=%d",value); display.clear(); display.setPos(0,0); display.write(txt); waitMs(100);

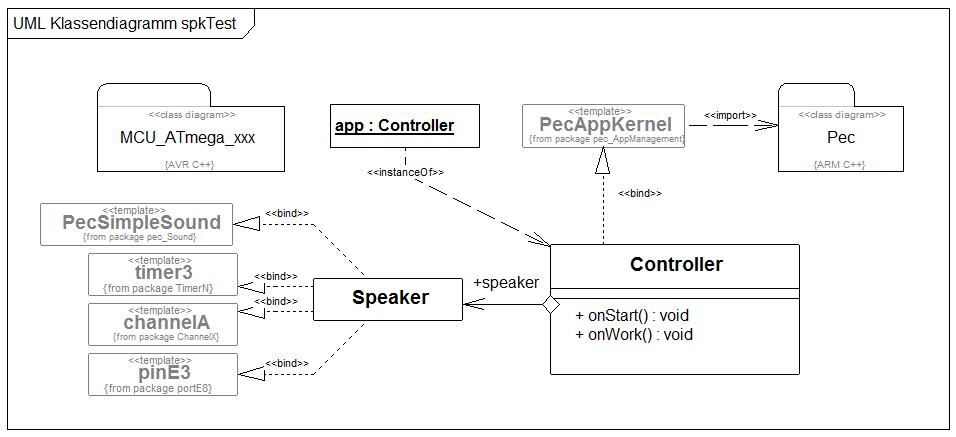

Speaker-Test
…
…
Controller::onWork()
// continuous event from the mainloop speaker.play(FLASHSTR("^^a")); waitMs(1000);
SD-Karten-Test
…
Nächster Schritt
- Projektiteration 2, Rahmenanwendung für das System erstellen und Komponente µSD entwickeln
